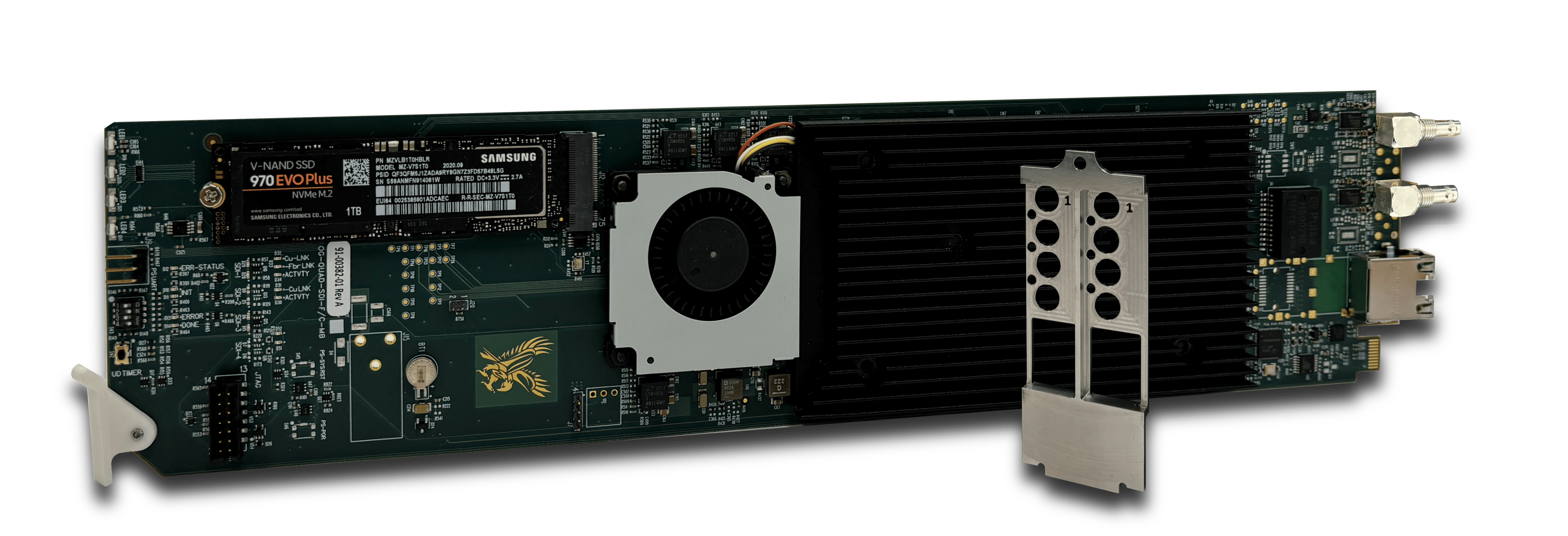

Osprey Talon OG-12G-2D

​Model: OG-12G-2D
SKU: 95-00532

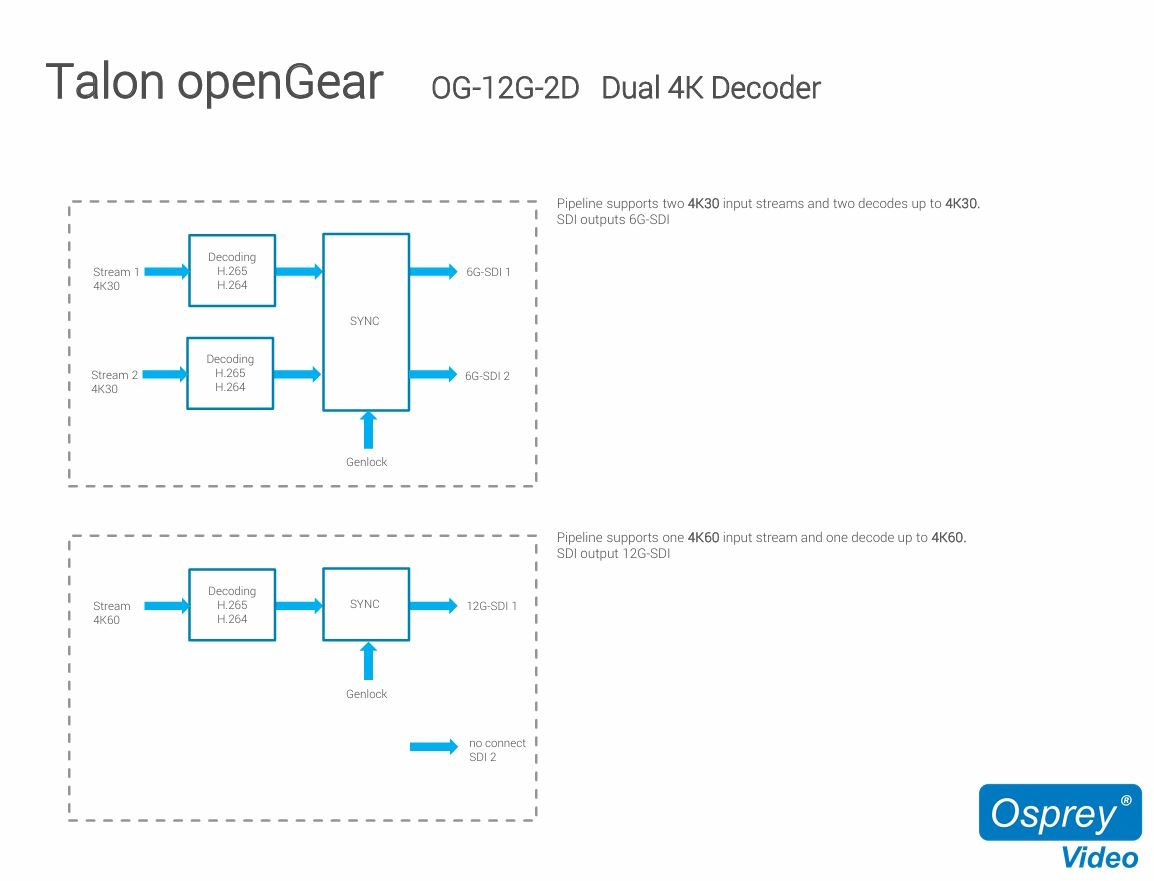

Video Outputs:
2x 6G-SDI (Dual Channel Decoding up to 2x 4K30)
1x 12G-SDI (Single Channel Decoding up to 1x 4K60)

​Audio Outputs:
Embedded 8Ch for each output (4 stereo pairs)

​Genlock:
Blackburst, Tri-Level

​I/O Connections:
HD-BNC for SDI
Ethernet #1 - RJ45
Ethernet #2 - openGear Frame
Genlock - openGear Frame
​
Video Formats:
PAL 576i, NTSC 480i
720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i at 30, 25 fps *
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
UHD 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
DCI 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
* interlaced decoding only supported HEVC point-to-point between Talon Encoder and Talon Decoder

​​Color:
Up to 10bit 4:2:2
REC 709

​Streaming Transports:
UDP, RTP, SRT™,Zixi™

​Video Processing:
none - output matches input stream

Video Compression:
H.264 (AVC), H.265 (HEVC)

​Audio Compression:
AAC-LC
​
Audio:
Input Sample Rate 48kHz
Audio Bitrate 64kbps to 512kbps

Software Features:
Enhanced security features
Remote firmware upgrade from web
Network time protocol
JSON REST API for software integration
Password protected
SMPTE 2038 support
Customizable notice and consent banner
Secure HTTPS (SSL) web based management
Open VPN Client
Whitelist/Firewall for Management IP Access

​​Dual GigE Ethernet:
Ethernet Port #1: GigE RJ45 Ethernet
Ethernet Port #2: GigE openGear Frame - requires Ross Video MFC-OG3-N Advanced Networking Frame Controller

In the Box:
Decoder
Rear IO Module

Mechanical:
Density 18 Cards per OG3 or OGx Frame (20 cards when ordered with customized OGx Frame)
Compatible with OG-X-FR, OG-3-FR and DFR8321 Frames
Operating Temperature -20C to 60C
Power 12V | 13W max
