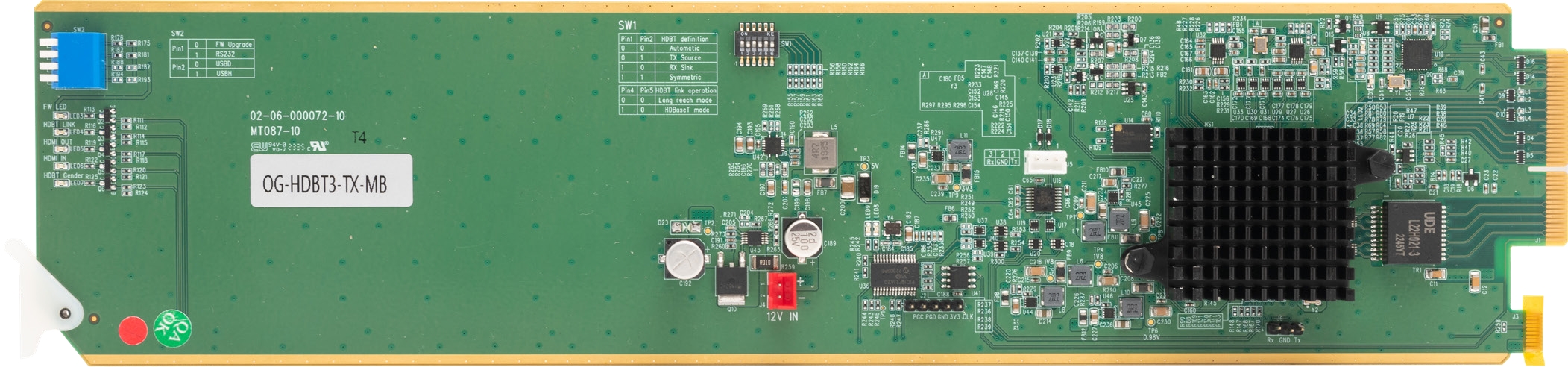

HDBaseT 3.0 HDMI 2.0 Transmitter (Model: OG-HDBT3-Tx)
HDMI 2.0 transmitter based on HDBaseT3 Technology
Product by: Apantac LLC
• Reliable point-to-point 4K@60Hz KVM extender with USB 2.0 interface
• Passes HDMI 2.0, USB 2.0, audio, IR, and RS-232 with the latest HDBaseT 3.0 Technology
• Supports up to 4096×2160@60Hz, RGB 4:4:4, 8-bit and Dolby Vision
• Extends up to 150 meters with 1920x1080p@8bit
• Extends up to 100 meters with 1920x1080p@12bit
• Extends up to 100 meters with 3840x2160p@60Hz, 4:4:4, 8-bit*
• 1 x HDMI input and 1 x HDMI loop out
• Industry-standard openGear OGX 3.0 card-based form factor
• Dashboard software GUI for status and control
• Hot-pluggable: Cards may be added or removed while frame is powered
• Fit up to 20 extenders/receivers in 2 RU frame
• Optional hot-swappable redundant frame power supply
* Requires HDBT3-certified CAT6 or CAT7 cable up to 594 MHz
Download Datasheet
• Passes HDMI 2.0, USB 2.0, audio, IR, and RS-232 with the latest HDBaseT 3.0 Technology
• Supports up to 4096×2160@60Hz, RGB 4:4:4, 8-bit and Dolby Vision
• Extends up to 150 meters with 1920x1080p@8bit
• Extends up to 100 meters with 1920x1080p@12bit
• Extends up to 100 meters with 3840x2160p@60Hz, 4:4:4, 8-bit*
• 1 x HDMI input and 1 x HDMI loop out
• Industry-standard openGear OGX 3.0 card-based form factor
• Dashboard software GUI for status and control
• Hot-pluggable: Cards may be added or removed while frame is powered
• Fit up to 20 extenders/receivers in 2 RU frame
• Optional hot-swappable redundant frame power supply
* Requires HDBT3-certified CAT6 or CAT7 cable up to 594 MHz
