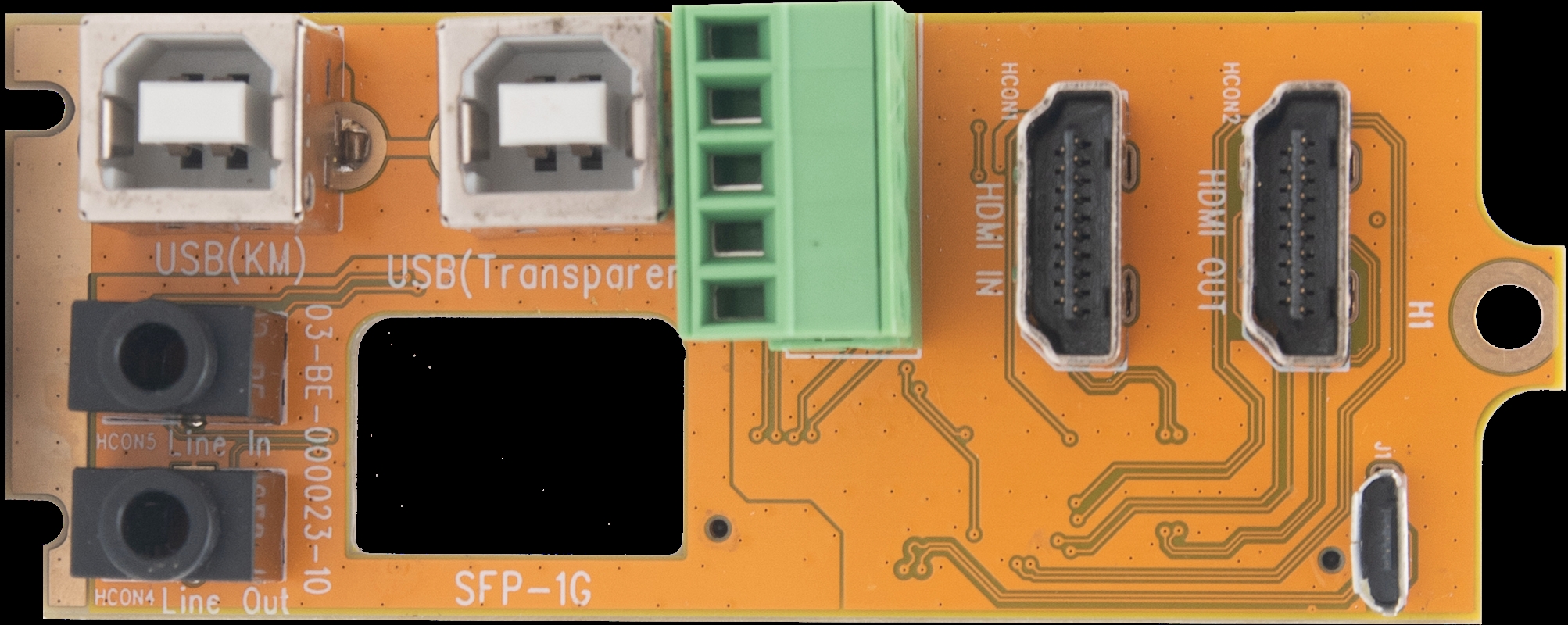

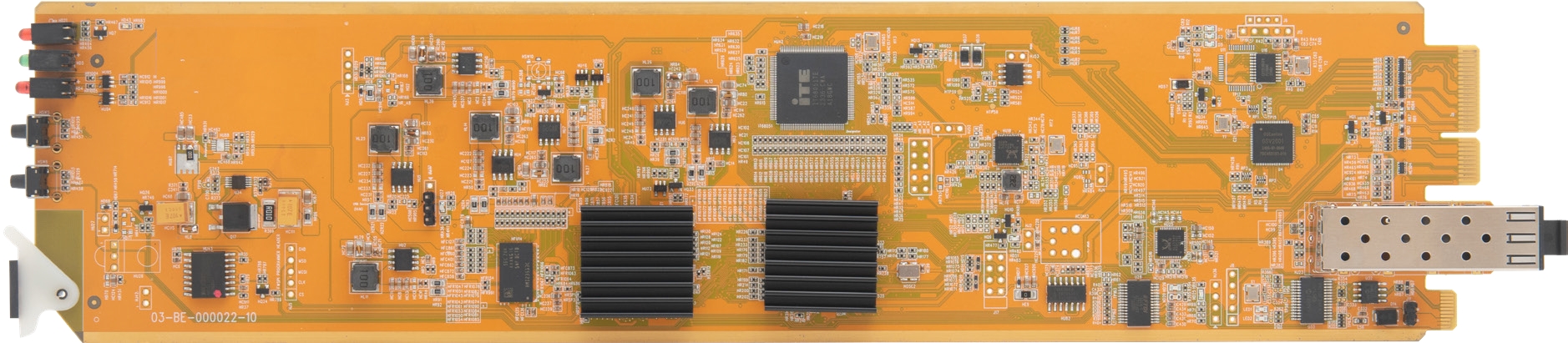

GigE-Based 4K Copper/Fiber KVM Extender (Model: OG-KVM-IP-Tx-UHD)
4K60 KVM Extender with copper or fiber output based on Gigabit Ethernet
Product by: Apantac LLC
• openGear 3.0/X card-based form factor
• Dashboard control enabled
• Up to 10 cards in an openGear OG-X frame
• Based on Gigabit Ethernet Technology over copper or fiber
• Matched with Apantac receivers KVM-IP-Rx-UHD or KVM-IP-Rx-UHD-F
• Multi-mode Fiber – support up to 550m (OM2/OM3)
• Single-mode Fiber – Supports up to 10 km
• Copper – Supports up to 170 meters point to point extension with CAT6 cable
• Copper – Supports up to 100 meters when used with a GigE switch
• Supports unicast point-to-point or multicast point-to-multi-point for AV distribution
• Performs similarly to an expandable KVM switch when bundled with a GigE switch
• Supports bi-directional stereo audio: embedded HDMI and external stereo input
• Supports RS-232 communication between Tx and Rx
• Built-in web-page for configuration
• Connection manager software for Tx/Rx management
• Supports resolutions up to 4096×2160@60Hz
• Advanced EDID management functionality:
• Built-in EDID
• EDID pass through
• Copy EDID
• Share EDID
• Built-in scaler on the receiver
• Low power consumption – less than 10W
Download Datasheet
• Dashboard control enabled
• Up to 10 cards in an openGear OG-X frame
• Based on Gigabit Ethernet Technology over copper or fiber
• Matched with Apantac receivers KVM-IP-Rx-UHD or KVM-IP-Rx-UHD-F
• Multi-mode Fiber – support up to 550m (OM2/OM3)
• Single-mode Fiber – Supports up to 10 km
• Copper – Supports up to 170 meters point to point extension with CAT6 cable
• Copper – Supports up to 100 meters when used with a GigE switch
• Supports unicast point-to-point or multicast point-to-multi-point for AV distribution
• Performs similarly to an expandable KVM switch when bundled with a GigE switch
• Supports bi-directional stereo audio: embedded HDMI and external stereo input
• Supports RS-232 communication between Tx and Rx
• Built-in web-page for configuration
• Connection manager software for Tx/Rx management
• Supports resolutions up to 4096×2160@60Hz
• Advanced EDID management functionality:
• Built-in EDID
• EDID pass through
• Copy EDID
• Share EDID
• Built-in scaler on the receiver
• Low power consumption – less than 10W
