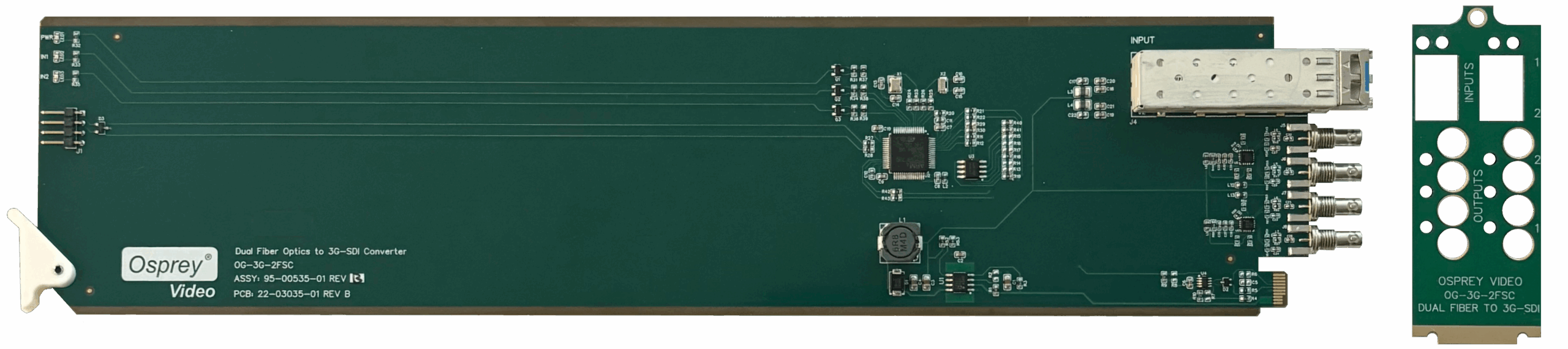

Osprey OG-3G-2FSC
Dual Channel Single Mode LC Fiber Optic to 3G-SDI Converter
Product by: Osprey Video
SKU: 95-00535 Model: OG-3G-2FSC Video Inputs: Dual Single Mode Fiber (9um/125um) Duplex LC Connector Wavelength 1270nm through 1610nm Sensitivity -24dBm at 3G-SDI Video Outputs: 2 x 3G-SDI (HD-BNC) Standards: SMPTE-259/292/424 and DVB-ASI Visual Indicators Front LEDs for Power and Signal Lock Status Power: 2.5W max Size: openGear Standard Single Slot (one rear module can accommodate 2 cards) Environment: Operating Temperature: 0 to 40 C (32 to 104 F) Storage Temperature -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: < 3000m (<10,000ft) User Interface openGear Dashboard control – Windows, Linux, macOS Signal Lock Status Card State Frame Connection State Manufacturer and Product Information openGear Compatibility OGX and OG3 up to 20 cards per frame DFR8321 up to 10 cards per frame In the box: openGear Card Rear Module Mounting Hardware
