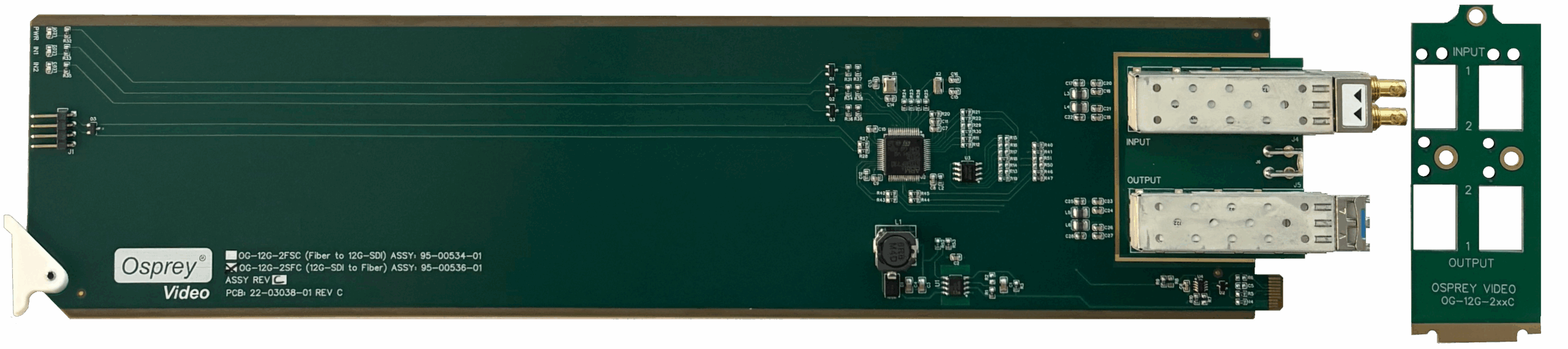

Osprey OG-12G-2SFC

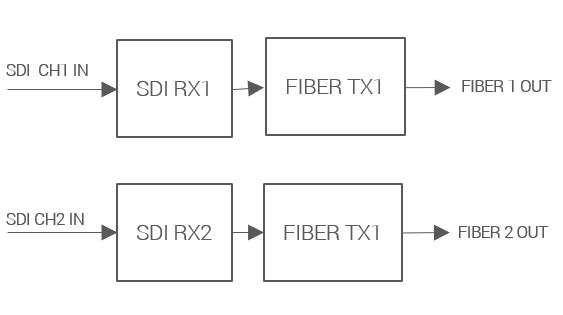

Dual Channel 12G-SDI to Single Mode LC Fiber Optic Converter
Product by: Osprey Video
SKU: 95-00536 Model: OG-12G-2SFC Video Inputs: 2 x 12G-SDI (HD-BNC) Video Outputs: Dual Single Mode Fiber (9um/125um) Duplex LC Connector Wavelength 1310nm Optical Power min -5dBm Extinction Ratio higher than 6dB Standards: SMPTE-259/292/424/2081/2082 and DVB-ASI Reclocking Integrated reclocker Visual Indicators Front LEDs for Power and Signal Lock Status Power: 3W max Size: openGear Standard Single Slot (one rear module can accommodate 2 cards) Environment: Operating Temperature: 0 to 40 C (32 to 104 F) Storage Temperature -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: < 3000m (<10,000ft) User Interface openGear Dashboard control – Windows, Linux, macOS Signal Lock Status Card State Frame Connection State Manufacturer and Product Information openGear Compatibility OGX and OG3 up to 20 cards per frame DFR8321 up to 10 cards per frame In the box: openGear Card Rear Module Mounting Hardware
